Electrical panels for potentially explosive areas

  • quadri elettrici 1
  • quadri elettrici 2

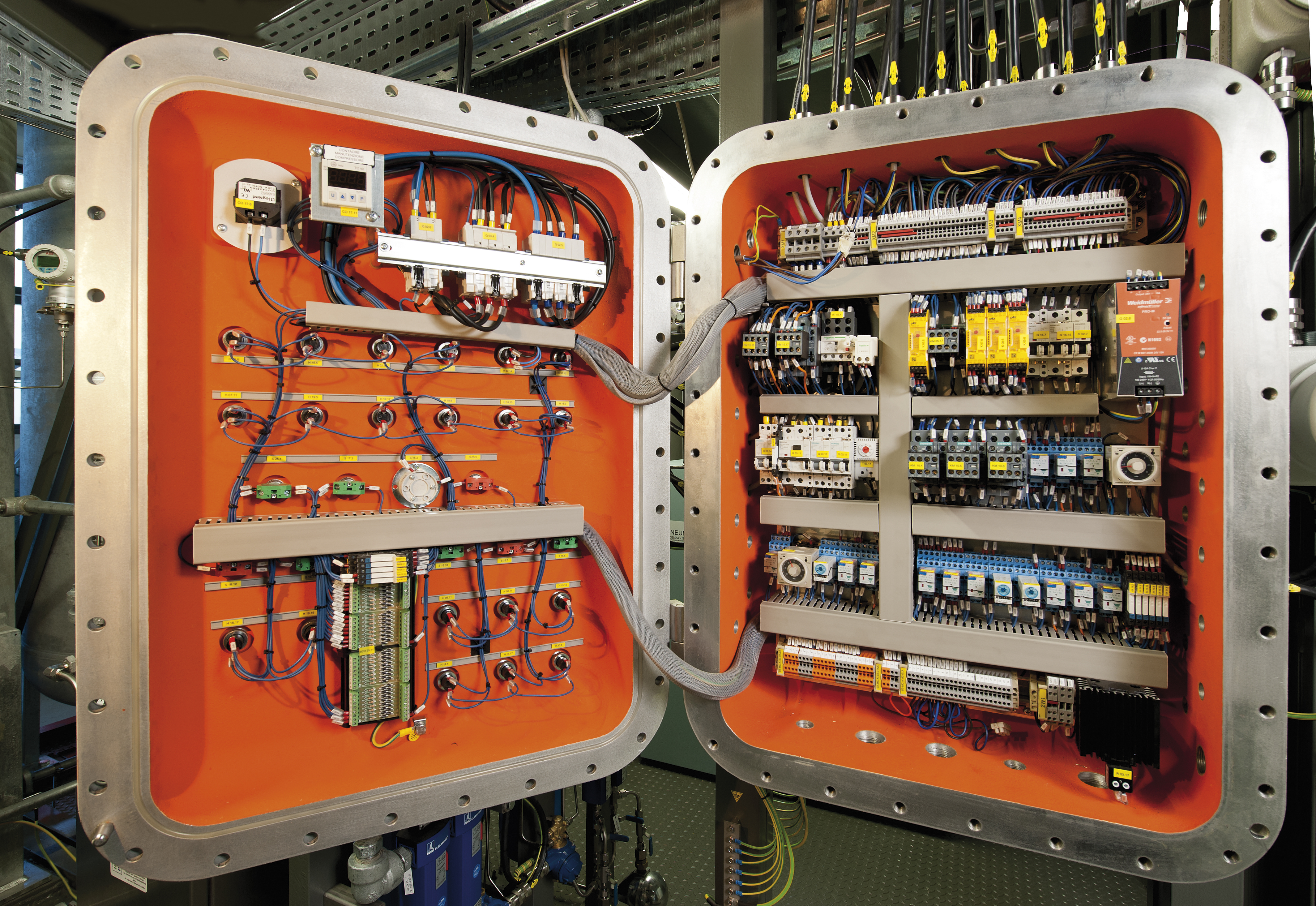

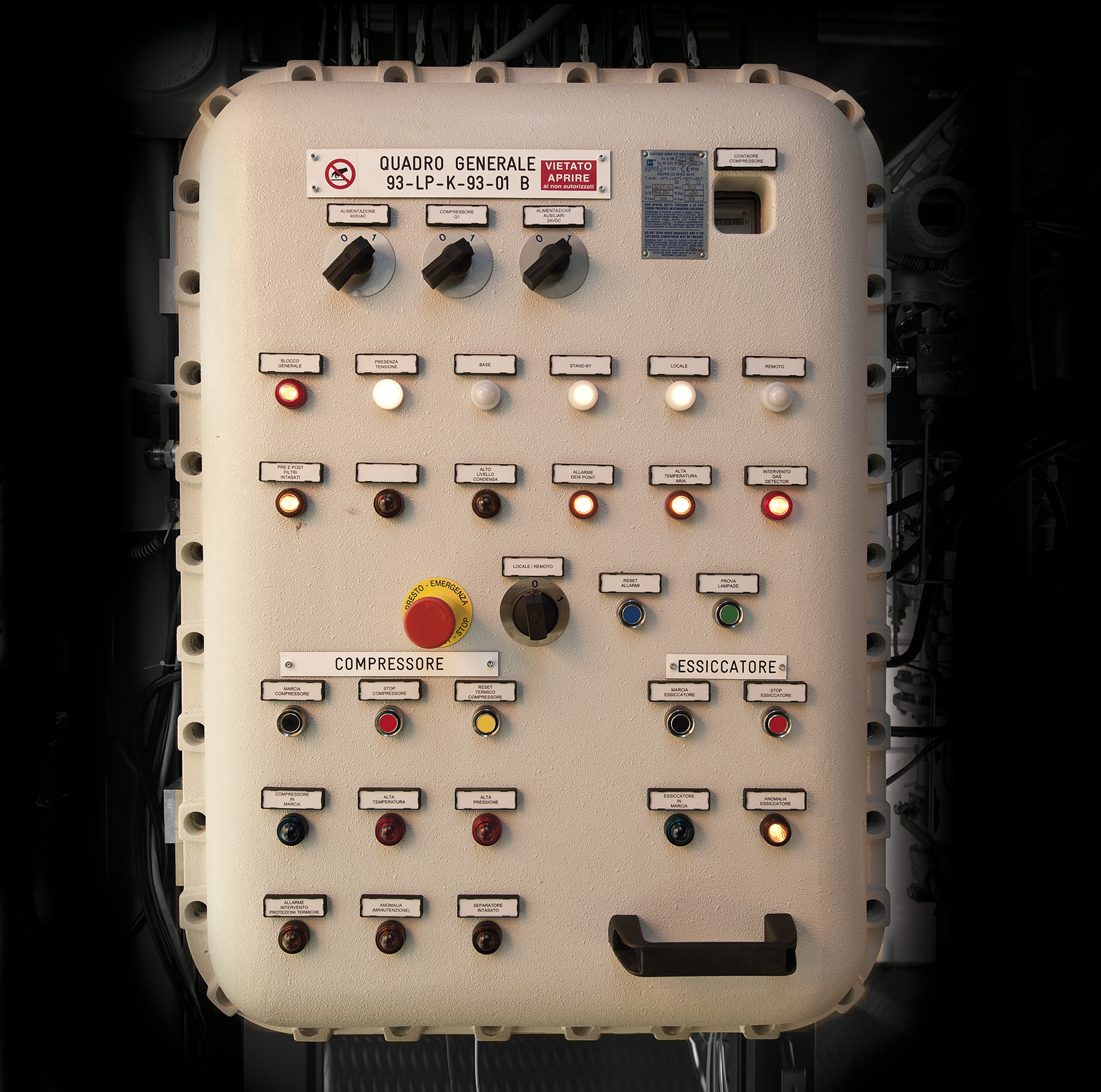

PNEUMOIDRAULICA ENGINEERING designs, assembles and installs many kinds of electrical control panels for installation in Oil & Gas potentially explosive areas. They are typically used for the management of the electric motors driving the pumps or the compressors in base/stand-by logic with all the relevant signalling, controls and blocks. They are realized with relays or programmable logic control ( PLC ) and then they are interfaced with the supervision system ( DCS - SCADA ) for the control and remote signalling.

Standard features:

  • Component Layout carefully studied to facilitate the control, checking and maintenance operations
  • EEx-d executions
  • Panels in aluminium alloy internal/external varnished
  • Protection degree: IP55
  • Components tropicalised
  • AISI316 stainless steel double sealed cable glands (for shielded / armoured cables)
  • Nameplates and documentation in Italian or English
  • ATEX / IECEx certification

Special features:

  • Very low power consumption for use with photovoltaic panels (green technology)
  • Installation in severe climate conditions (very low/very high temperatures, desert zones, etc.)
  • Panels in AISI316 stainless steel pressurized (EEx-p)
  • Protection degree IP65
  • Nameplates and documentation in different languages (Russian, Arabic, etc.)
  • Testing Officiated and Certification on customer request (UL/CSA, etc.)
